TRUSTED & VERSATILE
The P139-HD Digital Audio System is the industry’s most adaptable and efficient communication solution. Trusted by top law enforcement and mission/utility operators worldwide.
System Features
Multicast and Simulcast
Retransmit incoming audio on any mission radio. Select any radio combination.
Easy Programming of Levels, Priorities or Alert Tone
Using built-in web-based configuration interface.
Bi-Directional Radio Relay
With no additional components.
Bluetooth® Audio
For Select models. Connect a Bluetooth compatible device for call and audio streaming.
Configured for Your Unique Mission Requirements
Custom Functionality Programming
Customer specific configurations can be installed for specific mission requirements.
Custom Engraving
Control panels can be custom engraved at no additional charge.
NVIS-Compatible Lighting
Can be included at no additional charge.

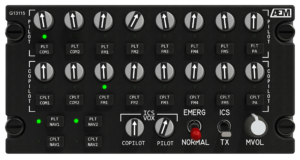

Pilot and Co-Pilot Control Panel Configuration
Allows for single control panel in the cockpit. This configuration is designed for use in small aircraft or if the pilots don’t need access to all the mission radios.
Pilot and Co-Pilot Control Panel Configuration
Allows for single control panel in the cockpit. This configuration is designed for use in small aircraft or if the pilots don’t need access to all the mission radios.
Crystal Clear, Mission-Ready Digital Audio
Excellent Sound Quality
Full 48Khz sampling for high quality audio.
Multiple ICS Zones
Isolate, call and private ICS functions in a single router.
Isolation Relays
Internal emergency Com 1 and Com 2 isolation relays with ICS between Pilot and Co-Pilot in emergency mode.

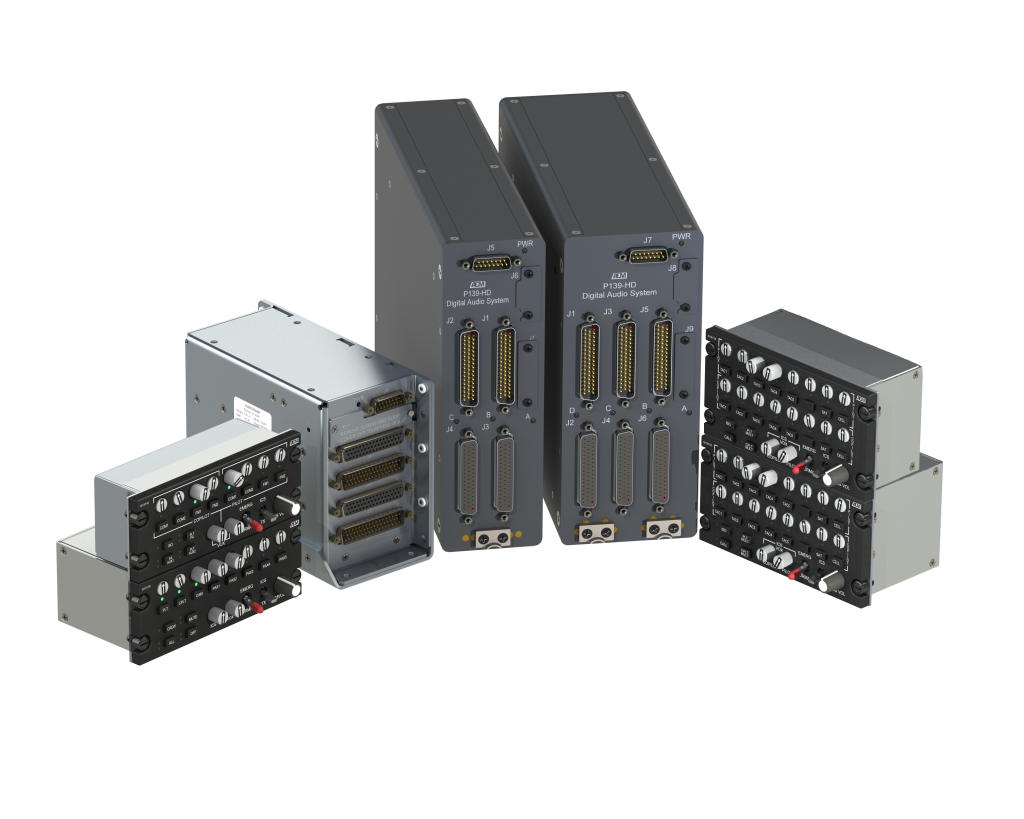

Configure Your System
The P139-HD Digital Audio System is a modular and scalable audio platform which provides centralized control and routing for all aircraft audio signals. The platform architecture provides a single integrated solution for all audio to or from transceivers, receivers, headsets, recorders, and other audio sources including intercom audio routing and talk groups.

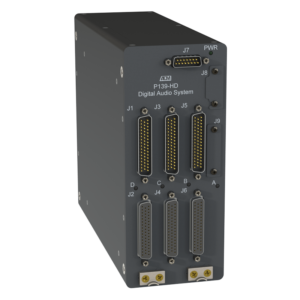

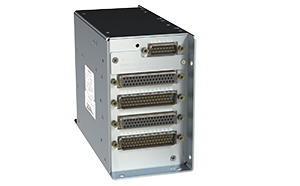

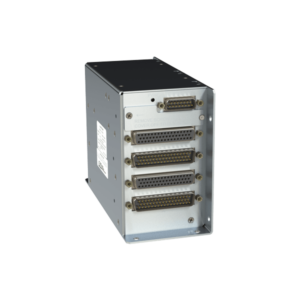

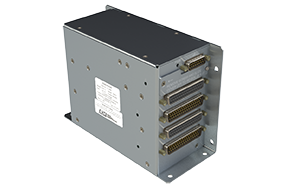

Audio Router Options
The Audio Router routes and mixes all aircraft audio from all sources controlled by the attached Control Panels and dictated by the installed configuration.
  |  |  |
|
| Headset Ports | |||
| Transceivers (Tx) or Receivers (Rx) | |||
| Internal 25W speaker driver for cabin briefings | |||
| Extra keylines for special functions or operation of other equipment | |||
| Eight programmable alert tone generators with priority | |||

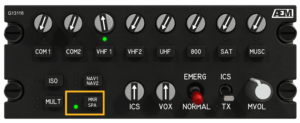

| Selected Positional Audio (SPA) | |||
| Dimensions (H x L x W) | [126 x 165.1 x 81 mm] | [215.9 x 254 x 66.7 mm] | [215.9 x 254 x 90.5 mm] |
| Weight |
*All P139-HD system routers can support 36+ control panels to meet configuration and mission requirements.

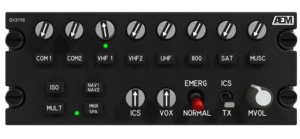

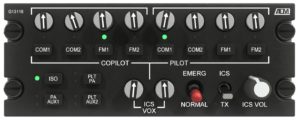

Control Panel Options
The Audio System may be configured to use any number of different control panel types, each specifically configured for a customer’s needs.
 |  |  | |
|
| Transceivers (Tx) or Receivers (Rx) | ||||
| Bluetooth® Audio | ||||
| Reduced depth for shallow panel installation | ||||
| Four programmable keys to integrate any function | ||||
| Full Multicast/Simulcast | ||||
| Bi-Directional Radio Relay | ||||
| Custom engraved buttons | ||||
| Dimensions (H x D* X W†) *Depth behind panel †Width of front panel | [56.9 x 40.5 x 146.1 mm] | [56.64 x 76.1 x 145.8 mm] | [75.4 x 47.2 x 146.1 mm]* | [75.18 x 76.1 x 145.8 mm] |
| Weight | ||||
Flexible by Design
Multi-Axis Mounting
Audio Router has multi-axis mounting points for any application.
Independent Dimmer Input
Two inputs for separate cockpit and cabin dimming.
Removable Memory Card
For easy system and firmware updates.
System Setup and Configuration
Plug and Play
No custom cable, no custom software.
Fine Tune Settings
Audio volume levels, alert tones and panel dimmers.
Built-in web-based interface allows user configuration of each enabled radio and headset port.
Save and Restore
Settings can be saved with comments and restored.

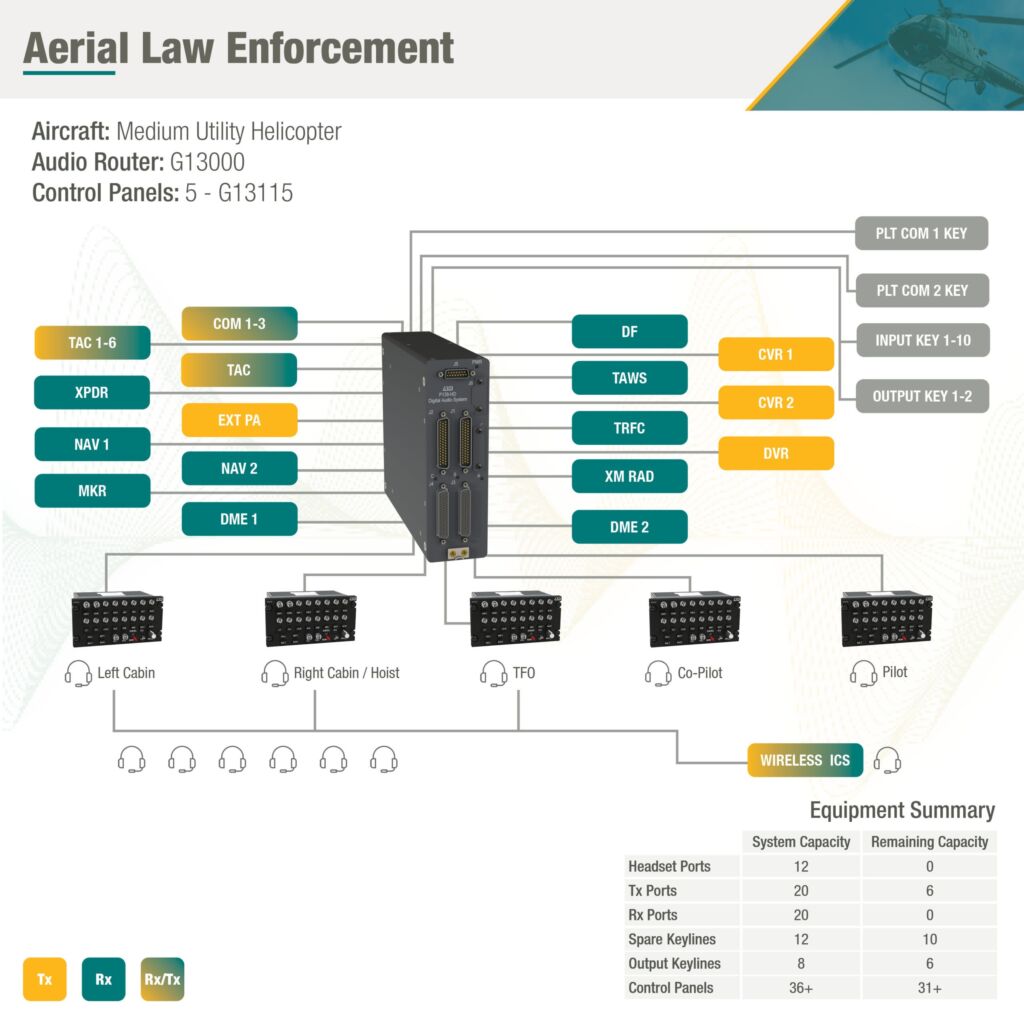

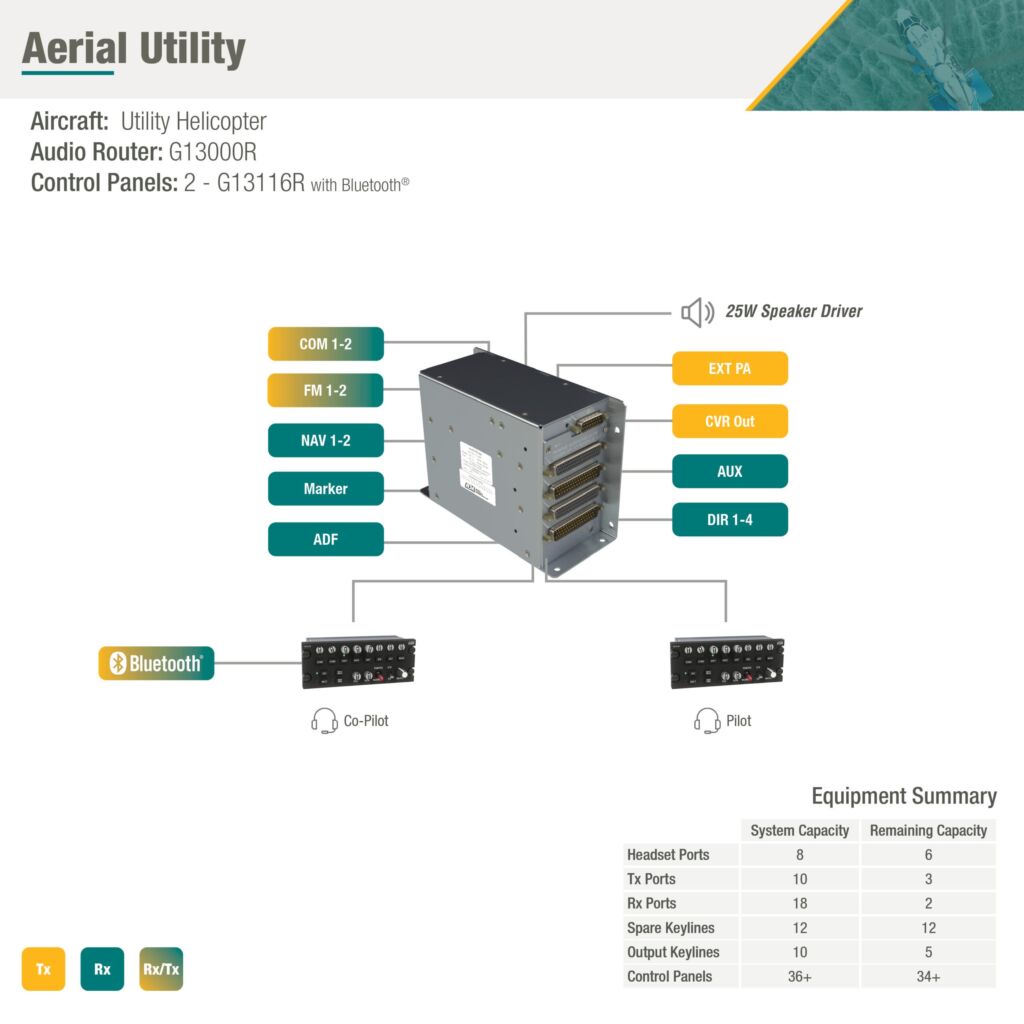

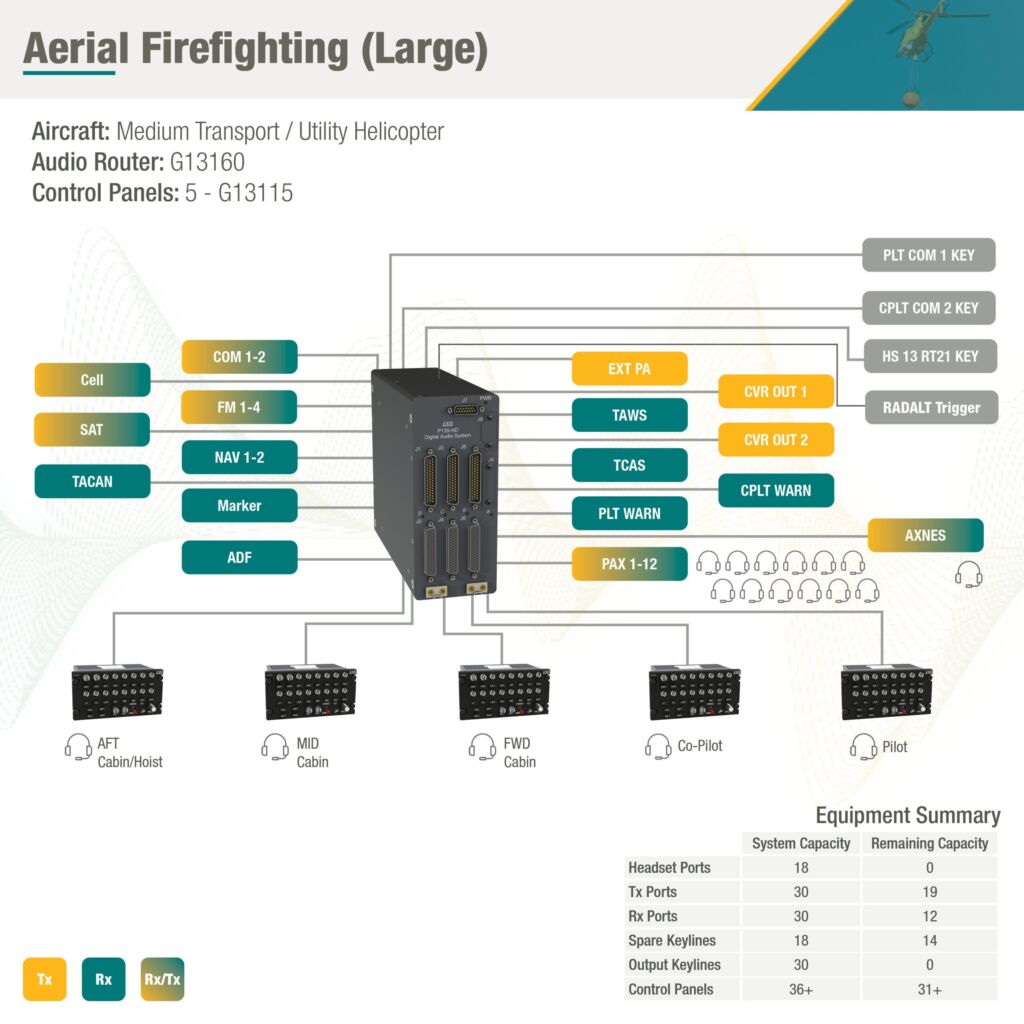

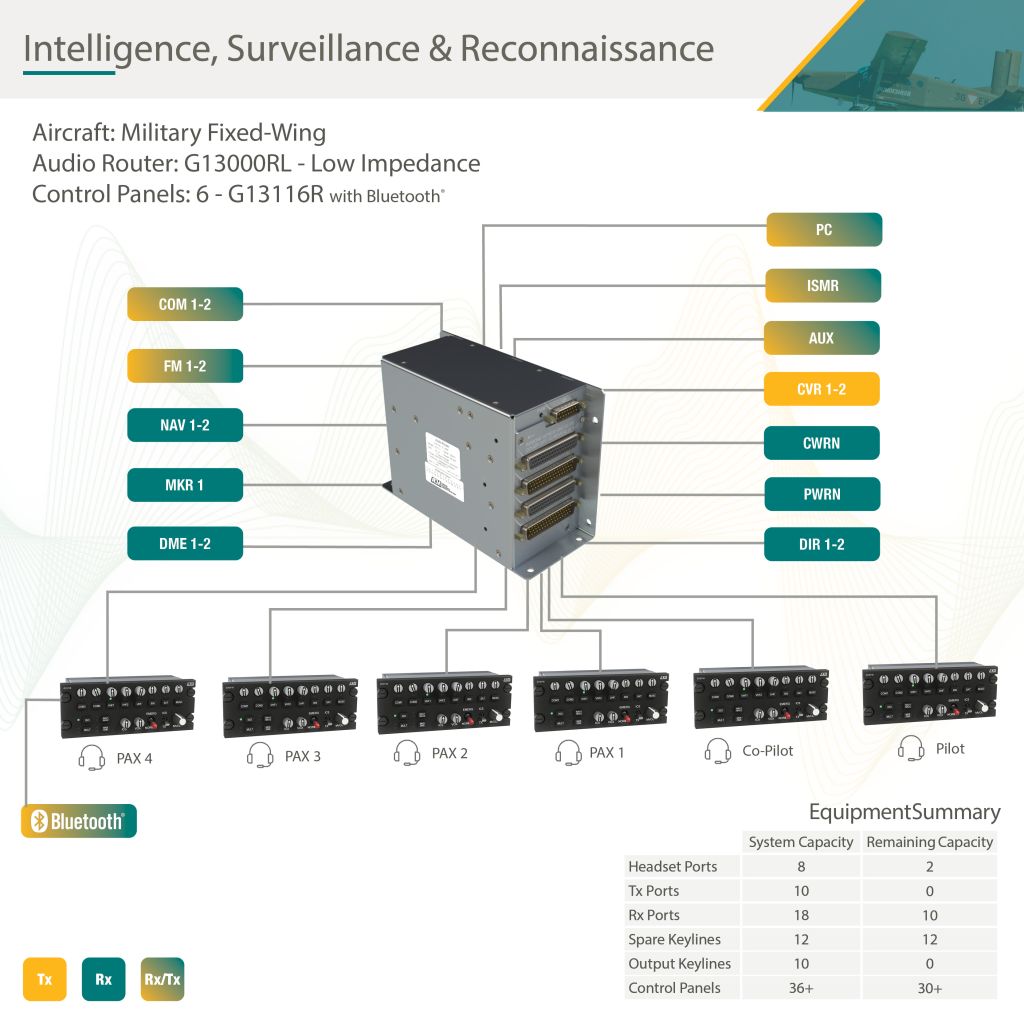

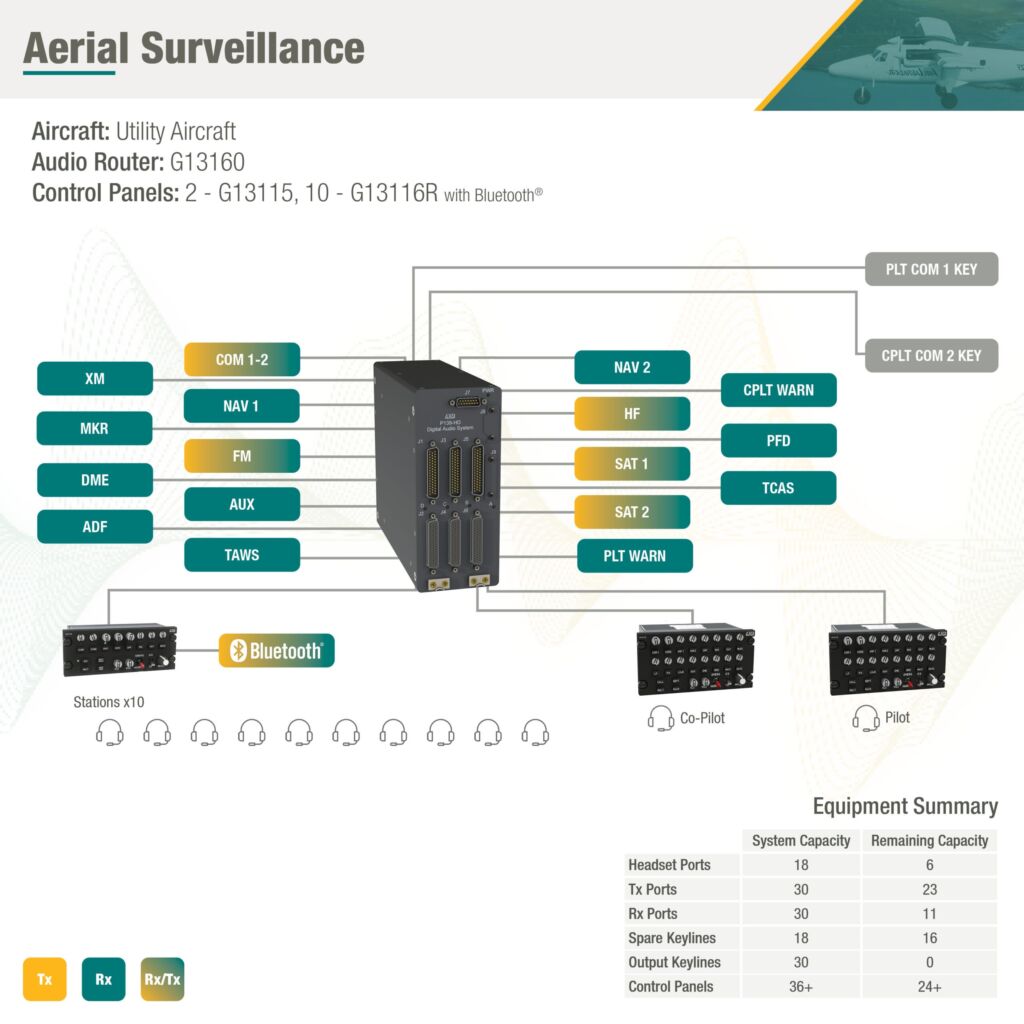

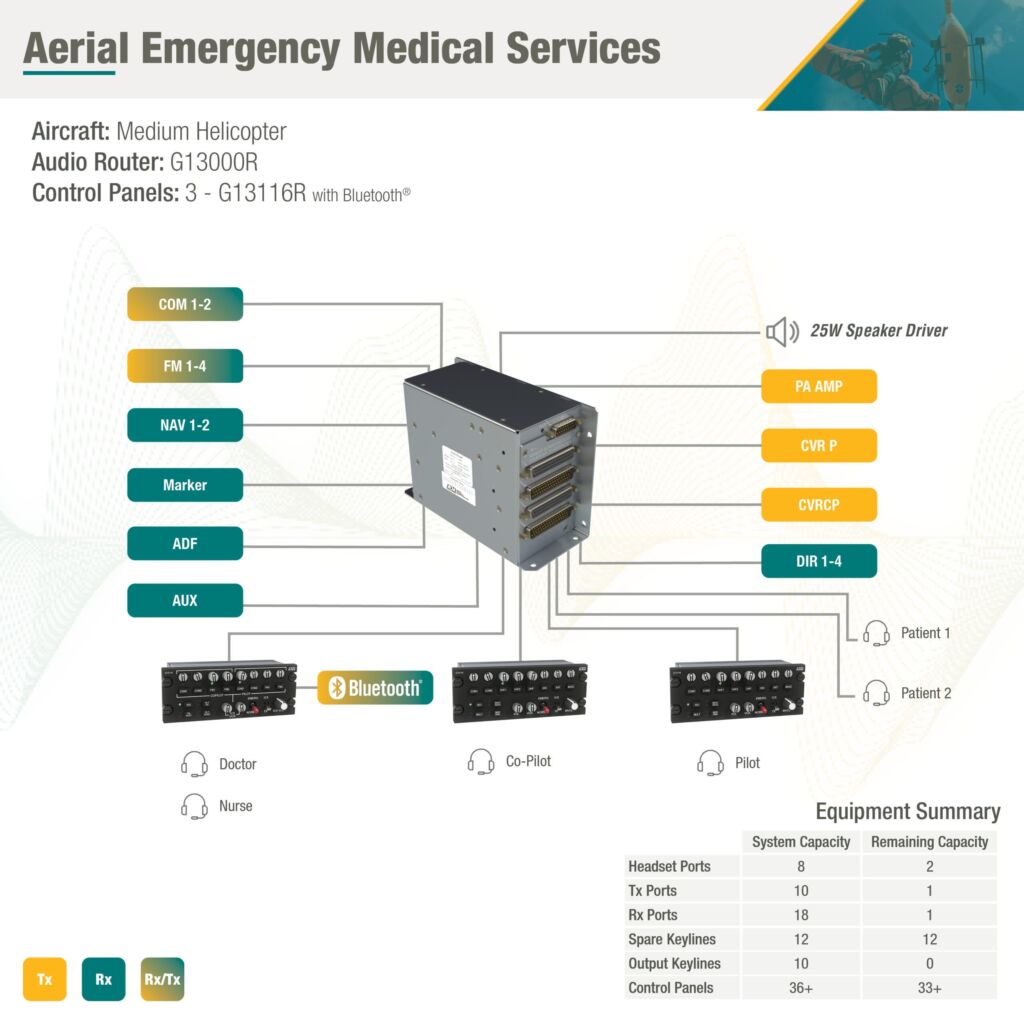

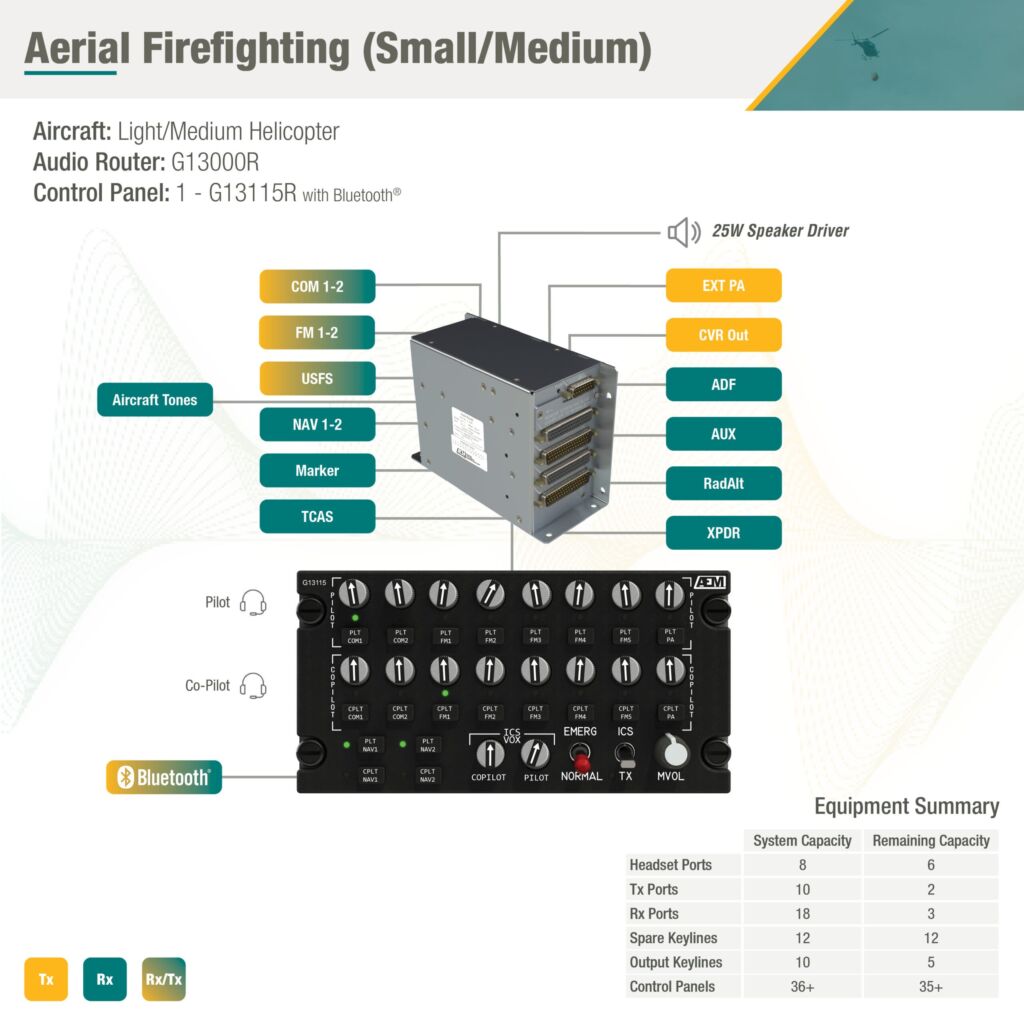

Example Configurations
Customer specific configurations can be installed for specific mission requirements.

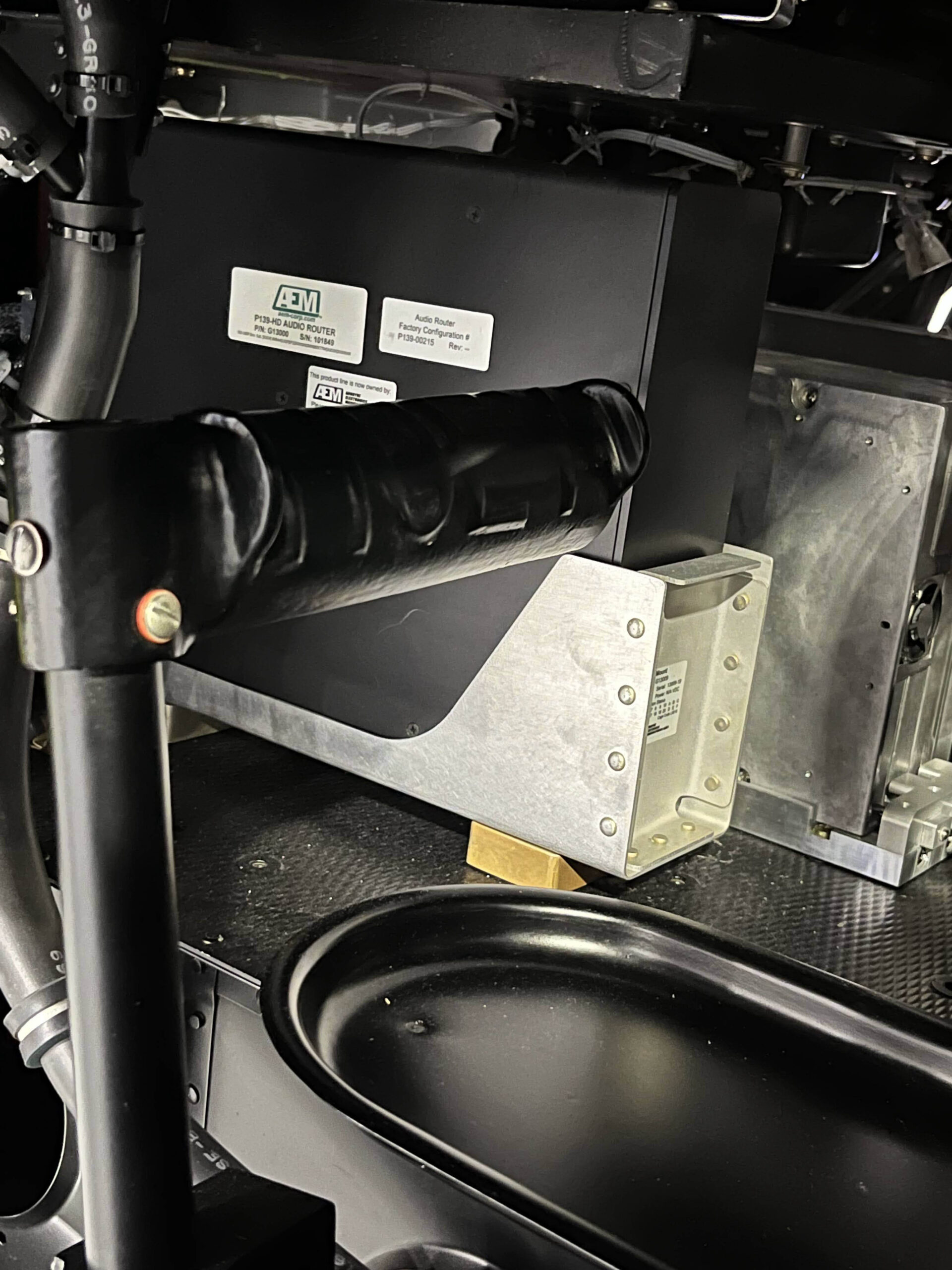

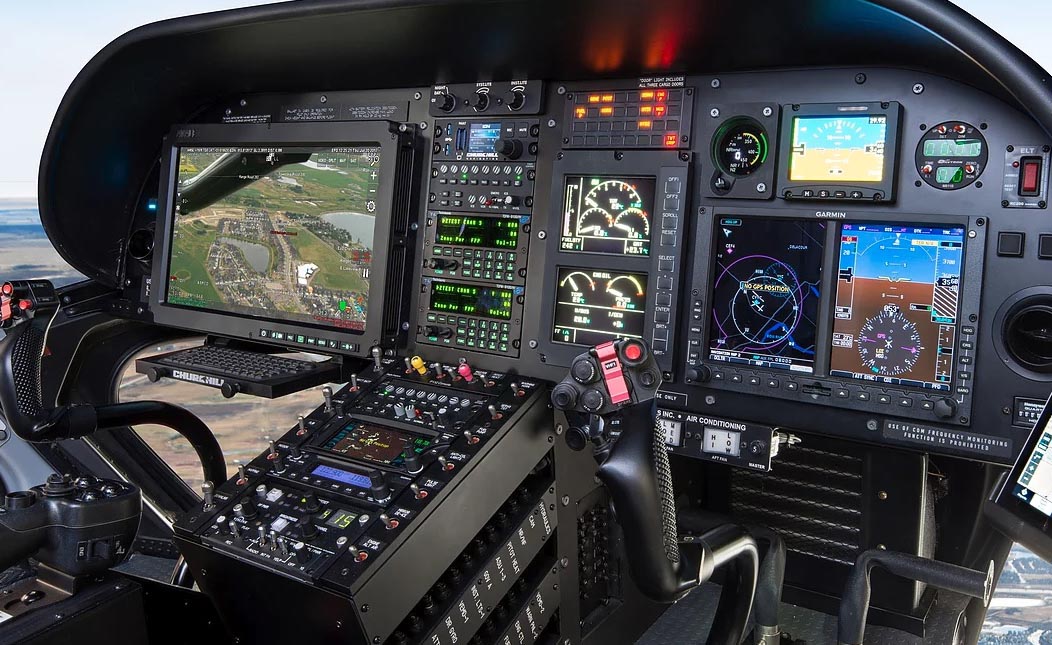

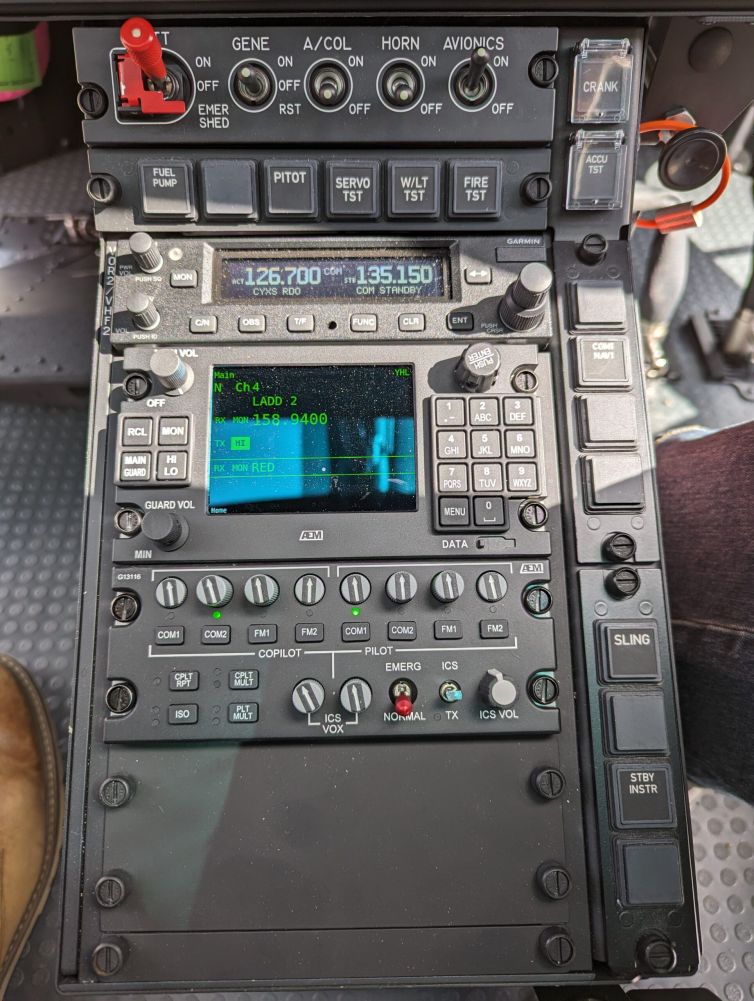

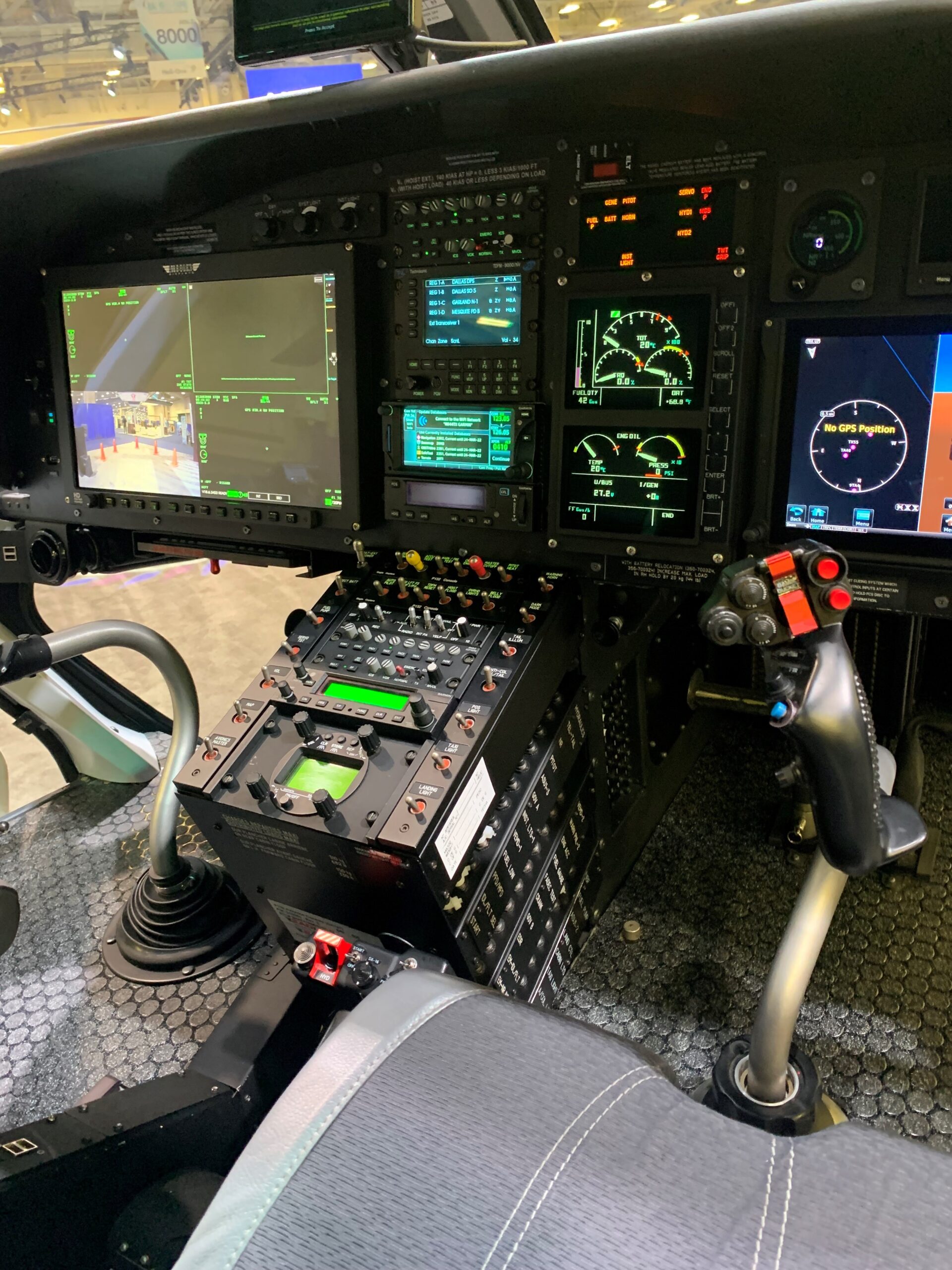

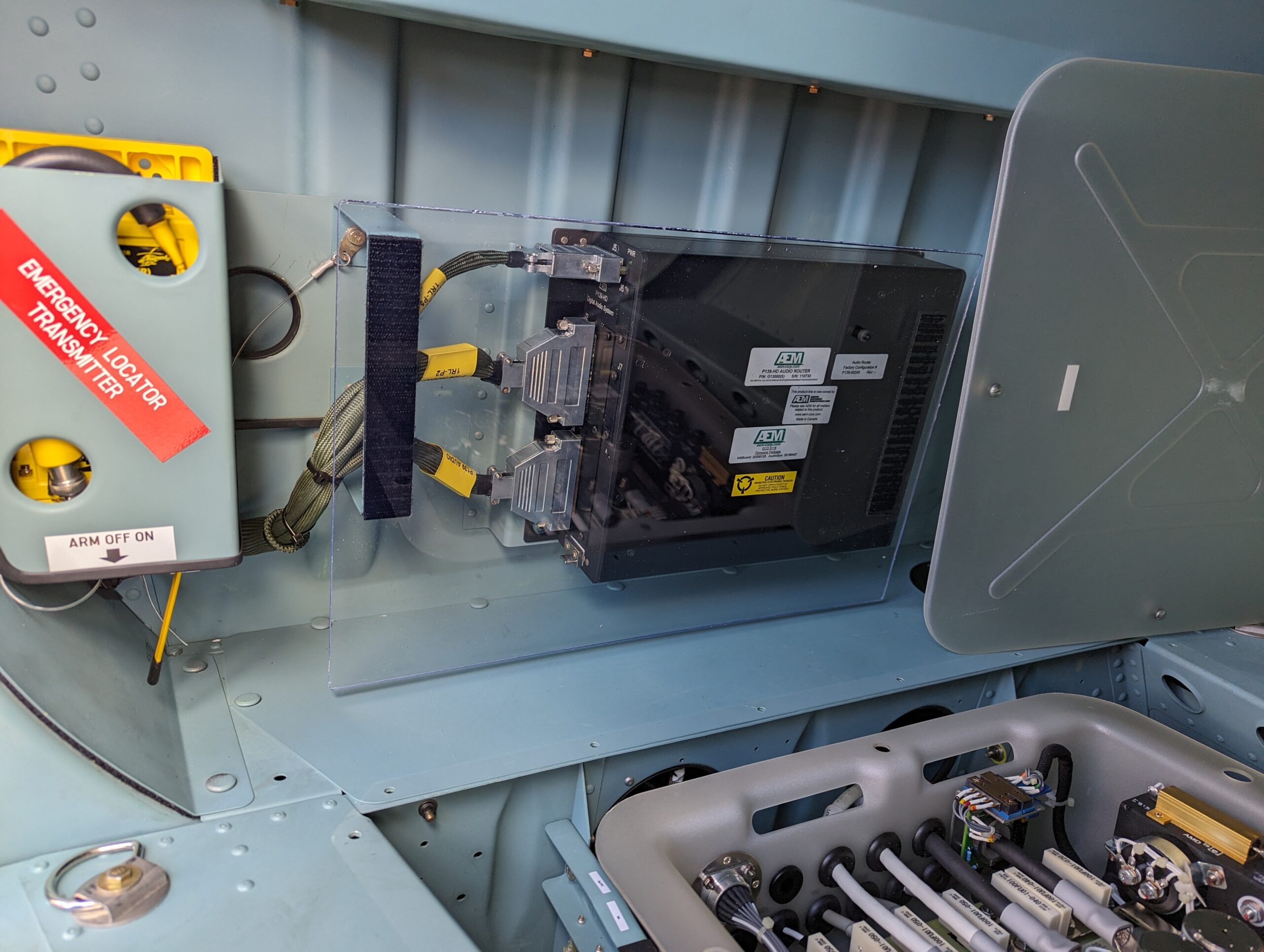

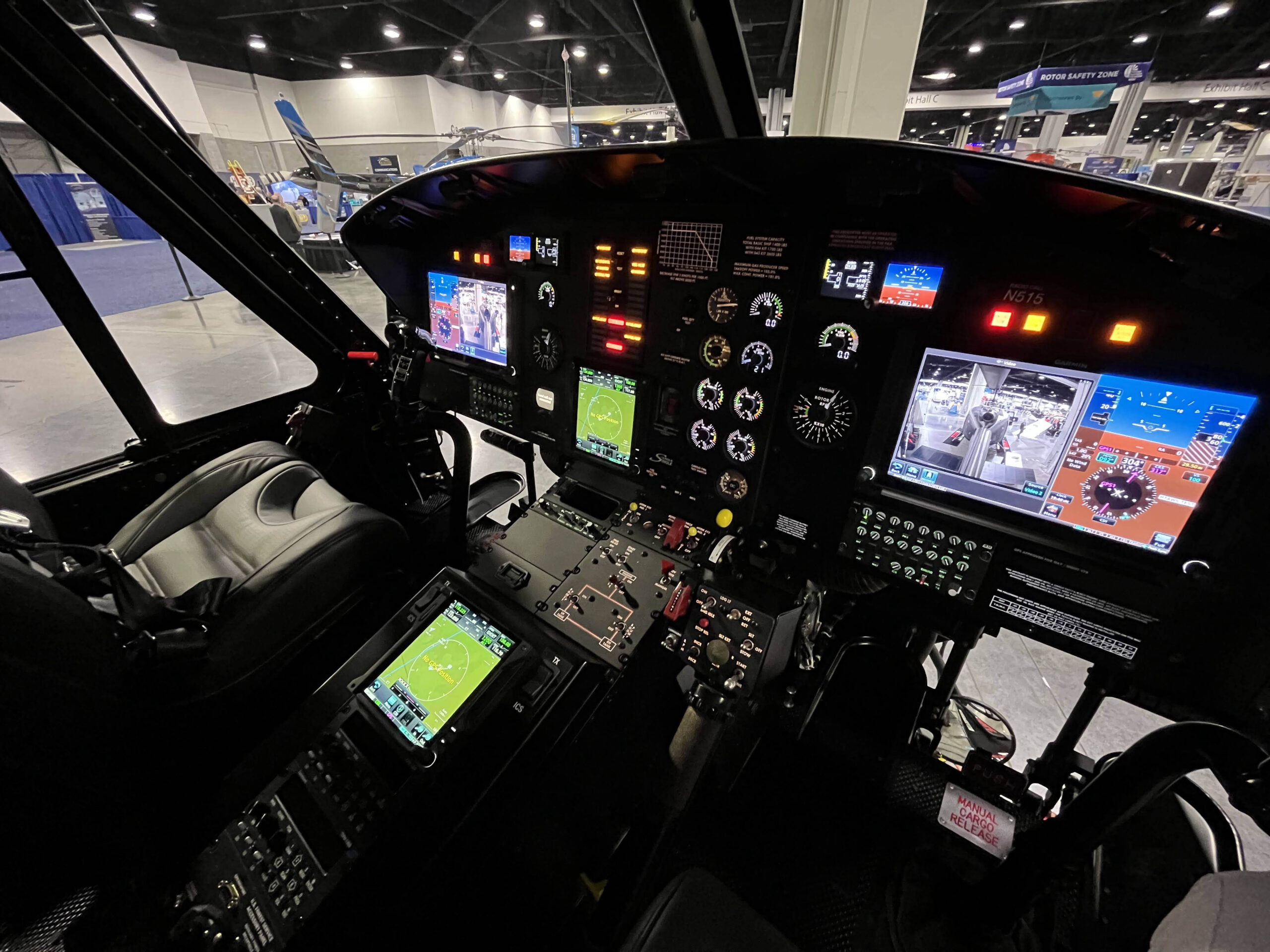

Customer Installs
P139-HD Digital Audio Documents
General System Documentation
| Title | Categories | Download |
|---|---|---|
| EMI Test Procedure (GA1-2TP) | Digital Audio Systems | |
| G13000R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116RNS Installation and Operation Manual Supplement | Digital Audio Systems | |
| P139-HD Operators Guide (Formerly GA063-3) | Digital Audio Systems | |
| P139-HD Troubleshooting Guide (GA212-01) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 1 & 2 Board Routers (G13004) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 3 Board Router (G13162) | Digital Audio Systems |
| Title | Categories | Download |
|---|---|---|
| EMI Test Procedure (GA1-2TP) | Digital Audio Systems | |
| G13000R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116RNS Installation and Operation Manual Supplement | Digital Audio Systems | |
| P139-HD ICA (ICA182-2) | Avionics Consoles | |
| P139-HD Installation Manual (GA182-7) | Digital Audio Systems | |
| P139-HD Operators Guide (Formerly GA063-3) | Digital Audio Systems | |
| P139-HD RFMS (GA182-3) | Digital Audio Systems | |
| P139-HD Troubleshooting Guide (GA212-01) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 1 & 2 Board Routers (G13004) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 3 Board Router (G13162) | Digital Audio Systems |
| Title | Categories | Download |
|---|---|---|
| EMI Test Procedure (GA1-2TP) | Digital Audio Systems | |
| G13000R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116RNS Installation and Operation Manual Supplement | Digital Audio Systems | |
| P139-HD ICA (ICA182-3) | Digital Audio Systems | |
| P139-HD Installation Manual (GA182-8) | Digital Audio Systems | |
| P139-HD Operators Guide (Formerly GA063-3) | Digital Audio Systems | |
| P139-HD RFMS (GA182-6) | Digital Audio Systems | |
| P139-HD Troubleshooting Guide (GA212-01) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 1 & 2 Board Routers (G13004) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 3 Board Router (G13162) | Digital Audio Systems |
| Title | Categories | Download |
|---|---|---|
| EMI Test Procedure (GA1-2TP) | Digital Audio Systems | |
| G13000R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116RNS Installation and Operation Manual Supplement | Digital Audio Systems | |
| P139-HD ICA (ICA212-1) | Digital Audio Systems | |
| P139-HD Installation Manual (GA212-3) | Digital Audio Systems | |
| P139-HD Operators Guide (Formerly GA063-3) | Digital Audio Systems | |
| P139-HD RFMS – Japanese (412EP) | Digital Audio Systems | |
| P139-HD RFMS (GA212-1) | Digital Audio Systems | |
| P139-HD Troubleshooting Guide (GA212-01) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 1 & 2 Board Routers (G13004) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 3 Board Router (G13162) | Digital Audio Systems |
| Title | Categories | Download |
|---|---|---|
| EMI Test Procedure (GA1-2TP) | Digital Audio Systems | |
| G13000R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116RNS Installation and Operation Manual Supplement | Digital Audio Systems | |
| P139-HD ICA (ICA182-5) | Digital Audio Systems | |
| P139-HD Installation Manual (GA182-11) | Digital Audio Systems | |
| P139-HD Operators Guide (Formerly GA063-3) | Digital Audio Systems | |
| P139-HD RFMS (GA182-12) | Digital Audio Systems | |
| P139-HD Troubleshooting Guide (GA212-01) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 1 & 2 Board Routers (G13004) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 3 Board Router (G13162) | Digital Audio Systems |
| Title | Categories | Download |
|---|---|---|
| EMI Test Procedure (GA1-2TP) | Digital Audio Systems | |
| G13000R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116R Installation and Operation Manual Supplement | Digital Audio Systems | |
| G13116RNS Installation and Operation Manual Supplement | Digital Audio Systems | |
| P139-HD ICA (ICA212-3) | Digital Audio Systems | |
| P139-HD Installation Manual (GA212-4) | Digital Audio Systems | |
| P139-HD Operators Guide (Formerly GA063-3) | Digital Audio Systems | |
| P139-HD RFMS (GA212-2) | Digital Audio Systems | |
| P139-HD Troubleshooting Guide (GA212-01) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 1 & 2 Board Routers (G13004) | Digital Audio Systems | |
| P139-HD Wiring Diagram, 3 Board Router (G13162) | Digital Audio Systems |
| FAA STC SR00521SE | AS350B, BA, B1, B2, B3, C, D, D1 AS355E, F, F1, F2, N EC135, P1, T1, P2, T2, P2+, T2+ Bell 206A, A1, B, L, L1, L3, L4 Bell 407 |
| TCCA STC SH09-17 | EC135 AS350B, BA, B1, B2, B3, D AS355E, F, F1, F2, N Bell 206A, A1, B, L, L1, L3, L4 Bell 407 |
| EASA STC 10036806 | AS350B, BA, B1, B2, B3, D AS355E, F, F1, F2 EC135 P1, T1, P2, T2, P2+, T2+ Bell 206A, B, L, L1, L3, L4 Bell 407 |
| ANAC STC 2007S06-30 | AS350B, BA, B1, B2, B3 AS355F, F1, F2, N EC135, P1, T1, P2, T2, P2+, T2+ Bell 206A, B, L1, L3, L4 Bell 407 |
| FAA STC SR02270SE | MBB BK 117 A-1, A-3, A-4, B-1, B-2, C-1, C-2, D-2 Bell 204B, 205 A, 205 A-1, 205 B, 212, 412, 412 EP, 412 CF Bell 214B, B1, ST |
| TCCA STC SH14-33 | MBB BK 117 A-1, A-3, A-4, B-1, B-2, C-1, C-2 Bell 204B, 205 A, 205 A-1, 205 B, 212, 412, 412 EP, 412 CF Bell 214B, B1, ST |
| EASA STC 10056456 | MBB BK 117 A-1, A-3, A-4, B-1, B-2, C-1, C-2 Bell 204B, 205 A, 205 A-1, 205 B, 212, 412, 412 EP, 412 CF Bell 214B, B1, ST |
| EASA STC 10056456 | MBB BK 117 A-1, A-3, A-4, B-1, C-1, C-2 Bell 204B, 205 A-1, 212, 412, 412 SP, 214 ST |
| ANAC STC 2014S11-01 | MBB BK 117 A-3, A-4, B-1, B-2, C-1, C-2 Bell 212, 412, 412 EP, 204 B, 205 A, 205 A-1, 214 B, 214 B-1 Bell 206L-3, 206L-4 |
| JCAB STC STC-460-TYO | Bell 412EP |
| FAA STC SA00329BO | PC12/47E |
| FAA STC ST00389BO | CL-600-2B16 (604 Variant) |
| FAA STC SA00380BO | Textron 208, 208B |
